Viair Heavy Duty 150 PSI Onboard Air System Compressor for up to 35 Inch Tires
4.7 (109 items)
Limited Time Sale$282.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 230374067 | Release Date | 2026/06/18 | List Price | $188.13 | Model Number | 230374067 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Keep your tires inflated and your ride safe when you keep the Viair Heavy Duty Onboard Air System onboard. This compressor is great for tires up to 35 inches big, small air tools, or even air horns and can be used continuously for up to 25 minutes or more. This system features a 2.5 gallon air tank and 400C compressor. It has a 150 PSI maximum working pressure, 33% duty cycle, 2.54 CFM maximum flow, permanent magnetic motor, and includes all parts needed for tire maintenance and small pneumatic tools.
- Kit includes everything you need to install an onboard air source for you to use with tire maintenance and small pneumatic tools
- Features a 2.5 gallon air tank and 400C, 33% duty cycle compressor
- Rated at 150 PSI maximum working pressure
- For inflating tires up to 35 inches on cars and RVs
- Bolt threads come pre-sealed so you can start installing right away
- Mounts inside or outside your vehicle
- Remote mount air filter assembly sealed compressor
- Replace air tank every 2 to 5 years
- Includes:
- 400C compressor
- 2.5-gallon air tank
- 35-foot coil hose with tire chuck
- 0.25-inch quick connect stud (F)
- 0.25-inch quick connect coupler (F)
- Dash panel gauge with on/off switch
- Pressure switch with relay (110 PSI on, 145 PSI off)
- 0.125-inch (F) to 0.25-inch (M) reducer
- 0.25-inch 175 PSI safety valve
- 0.25-inch drain cock
- 3, 0.25-inch compression fittings
- 20-foot 12-gauge wire with inline fuse holder
- 4-inch strip of continuous grommet material
- Electrical connections

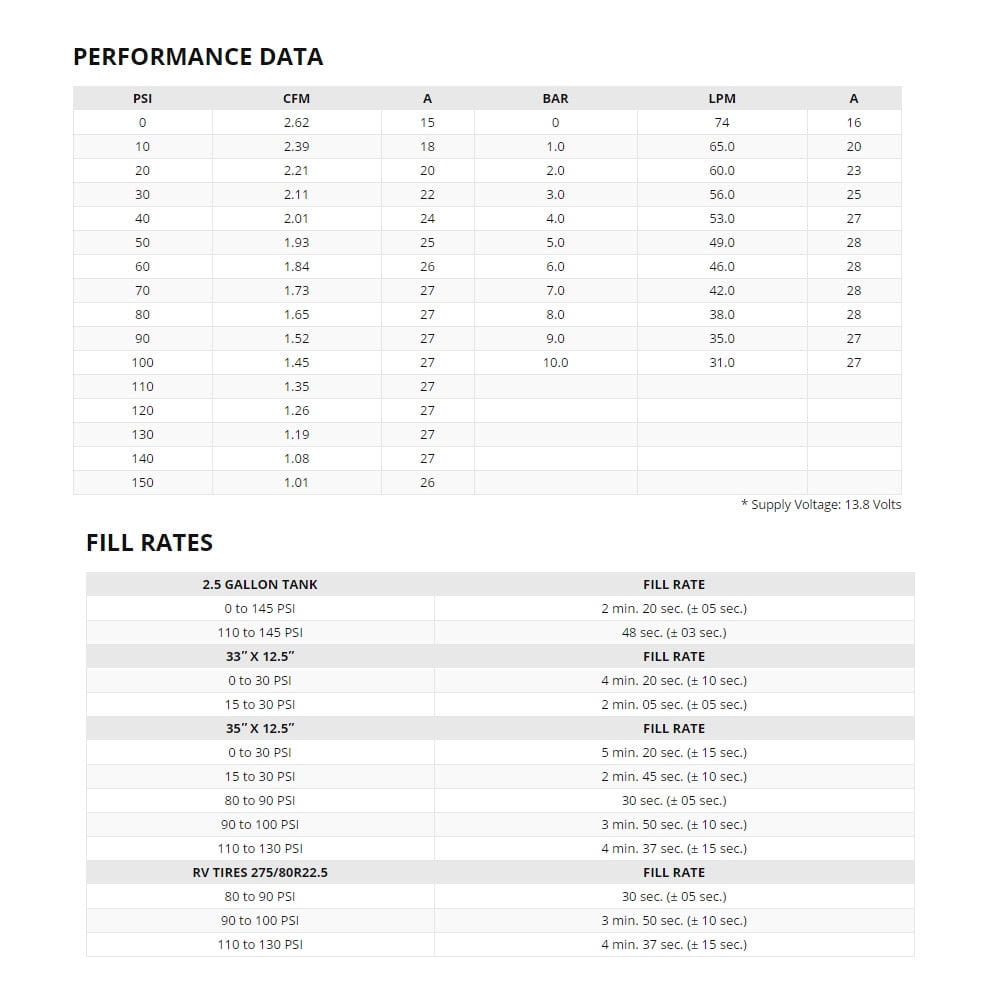

- Specifications:
- 2.62 CFM at 0 PSI
- 1.73 CFM at 70 PSI
- 1.01 CFM at 150 PSI
- Amperage: 28 amps
- Voltage: 12
- Tank capacity: 2.5 gallon
- Maximum working pressure: 150 PSI
- Power type: Electric
- Tank style: Horizontal
- Product type: Air compressor
- Duty cycle: 33% @ 100 PSI
- Motor: Permanent magnetic motor
- Ingress protection rating: IP67
- Color: Black
- Compressor dimensions: 8.86 x 3.94 x 6.77
- Tank dimensions: 23.9 x 5.94 x 7.62
- Manufacturer warranty: 1-year warranty
| Cfm | 2.62 |
|---|---|
| Volume capacity | 2.5 gal |
| Maximum psi | 150 psi |
| Power type | Battery |
| Number of stages | 1-Stage |
| Air compressor tank type | Horizontal |
| Brand | VIAIR |
| Features | Adjustable |
| Volts | 12 V |
| Amps | 28 Amps |
| Accessories | 400C compressor, 2.5-gallon air tank, 35-foot coil hose with tire chuck, 0.25-inch quick connect stud (F), 0.25-inch quick connect coupler (F), Dash panel gauge with on/off switch, Pressure switch with relay (110 PSI on, 145 PSI off), 0.125-inch (F) to 0.25-inch (M) reducer, 0.25-inch 175 PSI safety valve, 0.25-inch drain cock, 3, 0.25-inch compression fittings, 20-foot 12-gauge wire with inline fuse holder, 4-inch strip of continuous grommet material |
| Material | Multi |
| Weight | 32 lb |
| Has written warranty | No |
| Color | Silver |
| Model | VIAIR |
| Cord length | 35' |
| Assembled product dimensions (l x w x h) | 27.00 x 15.00 x 10.00 in |
| Has nrtl listing certification | N |
