Universal Power Pressure Washer Pump PCY 2800PSI 2.3GPM Heavy Duty Outdoor Cleaning Replacement

Pressure Washer Pump, 2800psi, Vertical 308653045 /308653052 2800 psi 2.5 gallons per minute Pre-filled with oil and ready to use Mounting Bolts Spacing between mounting bolts: 7 11/16" - 6 3/16" - 6 7/16" 7/8 shaft Fits GC135, GX140, GC160, Briggs and engines with 7/8 inch diameter shaft Will NOT fit 3/4” shaft motors, these motors require different pump Thermal Relief IS Included but will need to be installed opposite the inlet fitting. WHEN MOUNTED, the inlet and outlet will point in the OPPOSITE DIRECTION as the plug. This part is compatible with the following machines: HL80833 3-N-1 Hi-Speed Gasoline Pressure Washer UT80709 Pressure Washer UT80911 Pressure Washer UT80911A Pressure Washer UT80709A Pressure Washer UT80835 3-N-1 Hi-Speed Pressure Washer UT80933 3-N-1 Hi-Speed Pressure Washer UT80993 Pressure Washer UT80993A 2700 PSI Gas Pressure Washer GC80747 G-Clean Pressure Washer HLCA80710 Pressure Washer HU80709 Pressure Washer HU80911 Pressure Washer HU80709A Pressure Washer HU80911A Pressure Washer HU80714 Pressure Washer HU80915 Pressure Washer HU80715 Pressure Washer HU80722 Pressure Washer HU80722A Pressure Washer HU80833 3-N-1 Hi-Speed Gasoline Pressure Washer HU80833A 3-N-1 Hi-Speed Gasoline Pressure Washer HUCA80709A Pressure Washer PS262311 Pressure Washer PS80944 Pressure Washer PS80946 Pressure Washer PS80979 Pressure Washer PS80979A Pressure Washer UT80993B Pressure Washer UT80993D Pressure Washer WF80710 Pressure Washer WF80911 Pressure Washer HL80835 3-N-1 Hi-Speed Gasoline Pressure Washer UT80993E Pressure Washer UT80993F Pressure Washer RY80930 Pressure Washer

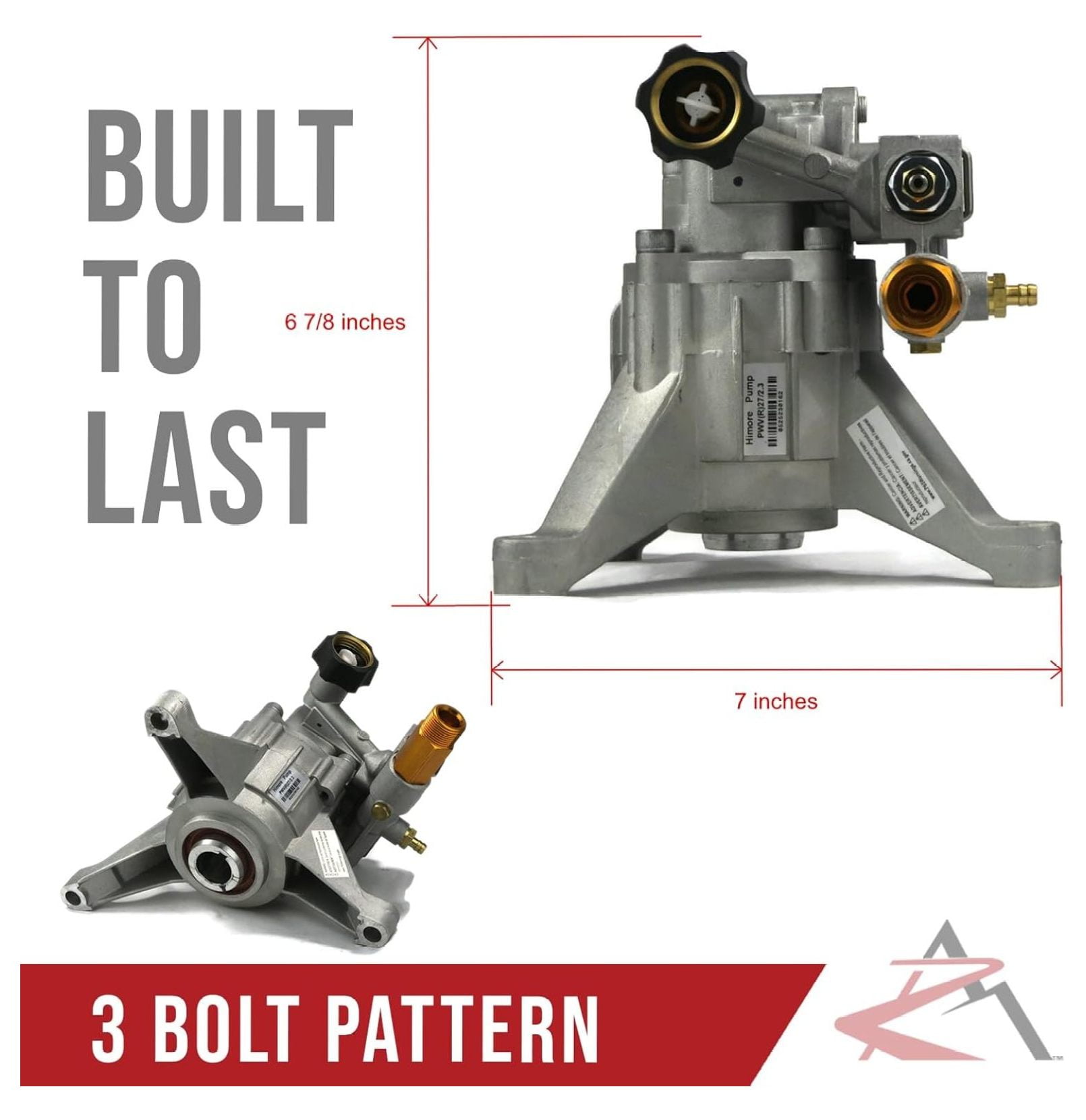

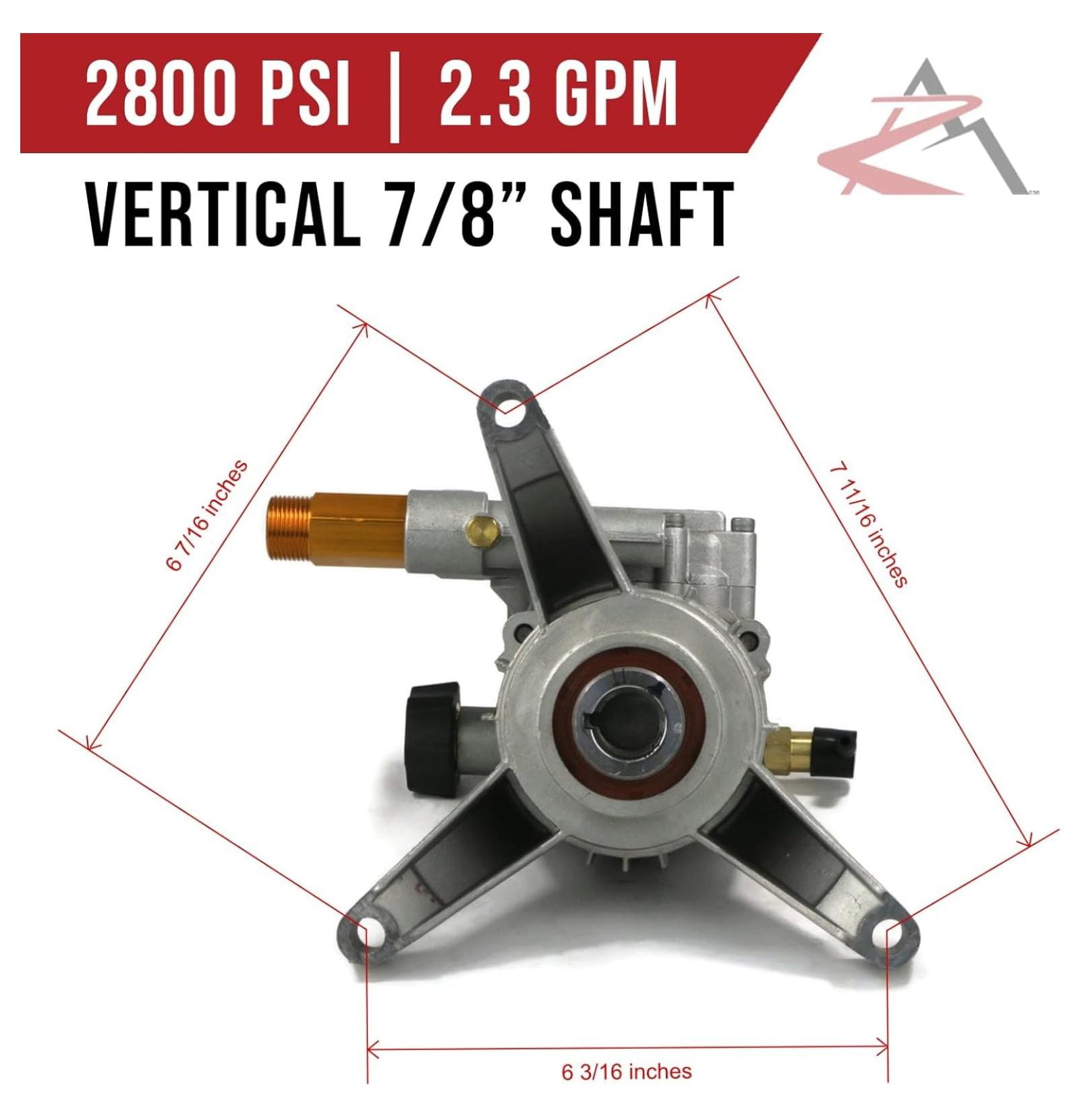

• Specs - Pressure: 2800 PSI. Flow: 2.3 GPM. Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Refer to images 2 and 3 for more information

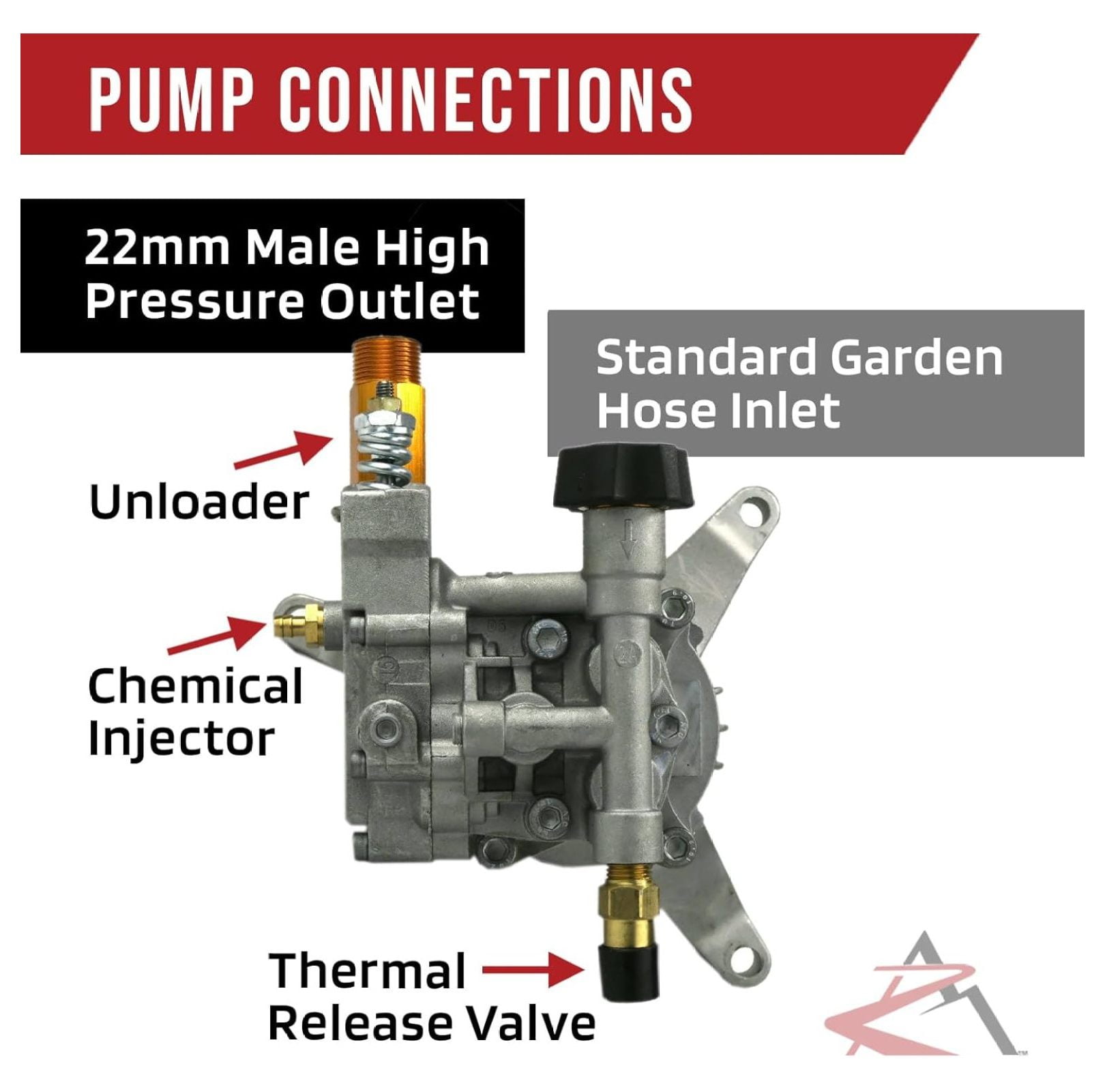

• Includes - (1) Vertical Pressure Washer Pump with Chemical Injector, Unloader , Thermal Release & Outlet Tube; comes as shown in the first image

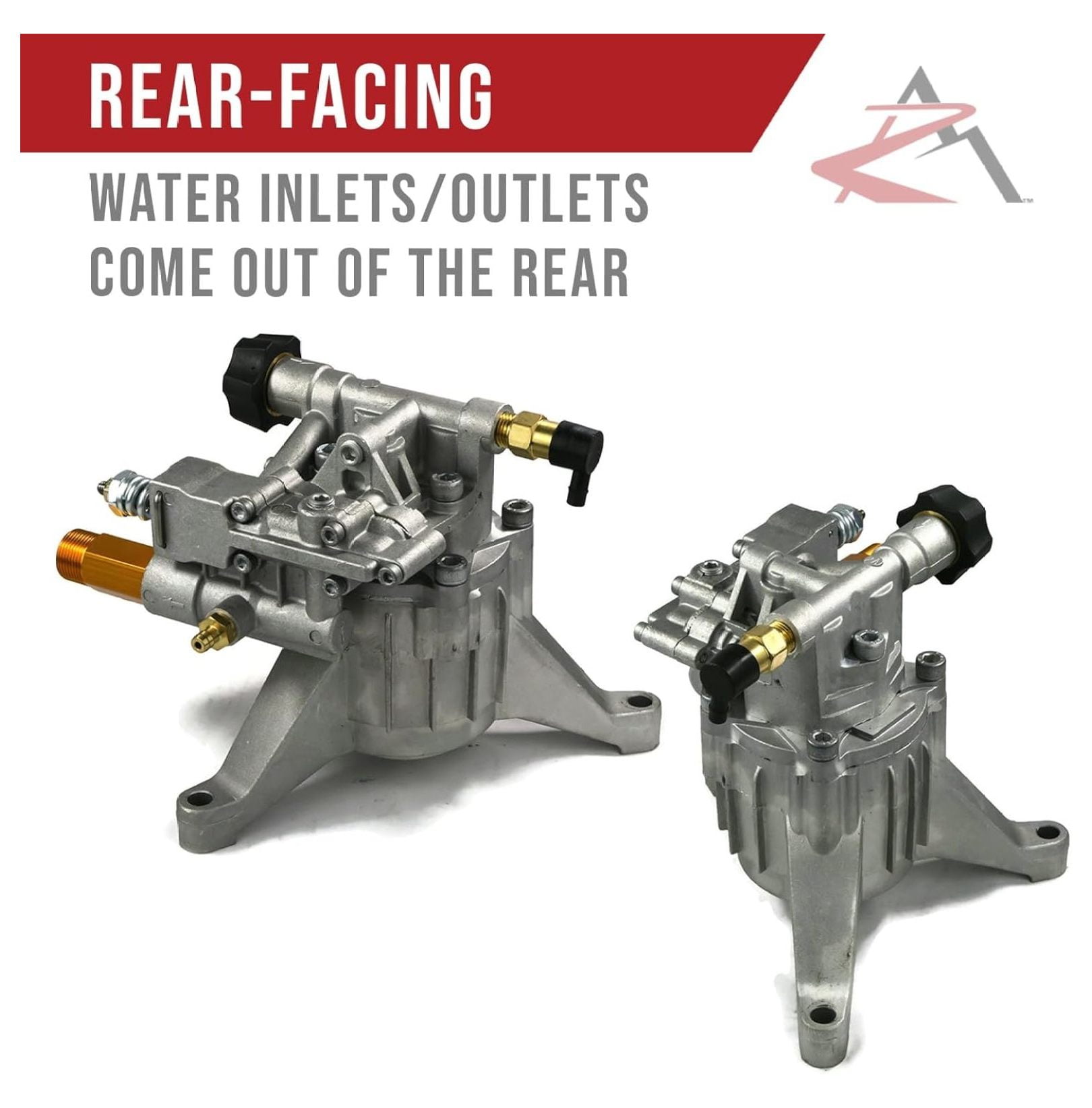

• This pump mounts vertical and is a rear facing (water inlets/outlets come out of the rear of the engine). Pump needs at least 5.5HP to handle PSI. Pump head can be flipped
• Please note it is not recommended to run any pressure washer pump above its PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
