Condenser Tube Cleaning Machine, 220V/110V Pipe Cleaning Brush with Flexible Shaft 0-2800RPM Adjustable Speed for 15-18mm Dia Pipes, for Chillers, Heat Exchangers, Ground Source Heat Pump

Condenser Pipeline Cleaning Machine 220V Product Overview: The condenser pipeline cleaning machine is a special device for cleaning away the dirt inside pipe bundles of condensers of central air conditioners. Product Parameters: Motor: 370W Overload protection: 15A Weight of main machine: 10kg Power voltage: 220V (A 110V transformer is given as a present. If your power supply is 110V, you can connect the machine to the transformer and then connect the transformer to your 110V power supply.) Use temperature: 0-40˚C External size: 365*240*210mm (14.4*9.4*8.3 inch) Rotating speed: 0-2800r/min Applicable pipe diameter: 15-18mm (0.6-0.7 inch) Brush: Nylon brush * 10 pcs * 15.9mm (0.6 inch) Attention: 1. The flexible shaft should be stretched completely before powering on the machine, otherwise the mechanical core inside the shaft core will be twisted off, and the customers need to purchase accessories at their own expenses for replacing the damaged accessories. 2. When the machine is not used for a long time, please pull out the flexible shaft, and apply oil to the flexible shaft so as to maintain it and prevent the shaft core from rusting. 3. When the machine is powered on and works, do not touch the transmission device with hands to avoid injuries. Operation Method: Correct installation, use and maintenance of equipment are important links for guaranteeing normal operation of the mechanical equipment, and therefore please be sure to carefully assemble and use the equipment in strict accordance with the manual. Item Included(022830): 1 x Condenser Pipeline Cleaning Machine 220V

• [SUPERIOR CORNERING ABILITY FOR COMPLEX PIPES]- The condenser pipeline cleaning machine can pass through elbows easily and smoothly. It is suitable for straight pipes, U-shaped pipes and S-shaped pipes and has high flexibility, ensuring thorough cleaning in hard-to-reach areas. Ideal for 15-18mm diameter pipelines, it solves the pain point of inefficient heat exchange caused by stubborn silt, scale, and other inclusion buildup
• [WET-DRY SEPARATION DESIGN FOR ENHANCED DURABILITY]- Featuring an innovative wet-dry separation system, this condenser pipeline cleaning machine prevents water from entering the main host, safeguarding the motor and extending lifespan. This pipe dirt removal equipment addresses the common issue of machine failure due to moisture exposure. Perfect for air conditioner chiller pipes, it ensures reliable operation in diverse environments
• [HIGH-EFFICIENCY PHYSICAL DESCALING WITH ADJUSTABLE SPEED]- Powered by a 370W motor, this machine drives a high-speed rotating brush (0-2800r/min) to physically dislodge tough scale, silt, and other inclusion, restoring heat exchange efficiency without chemicals. The stepless variable-frequency speed control lets you adjust cleaning intensity based on pipeline conditions, preventing damage while maximizing productivity

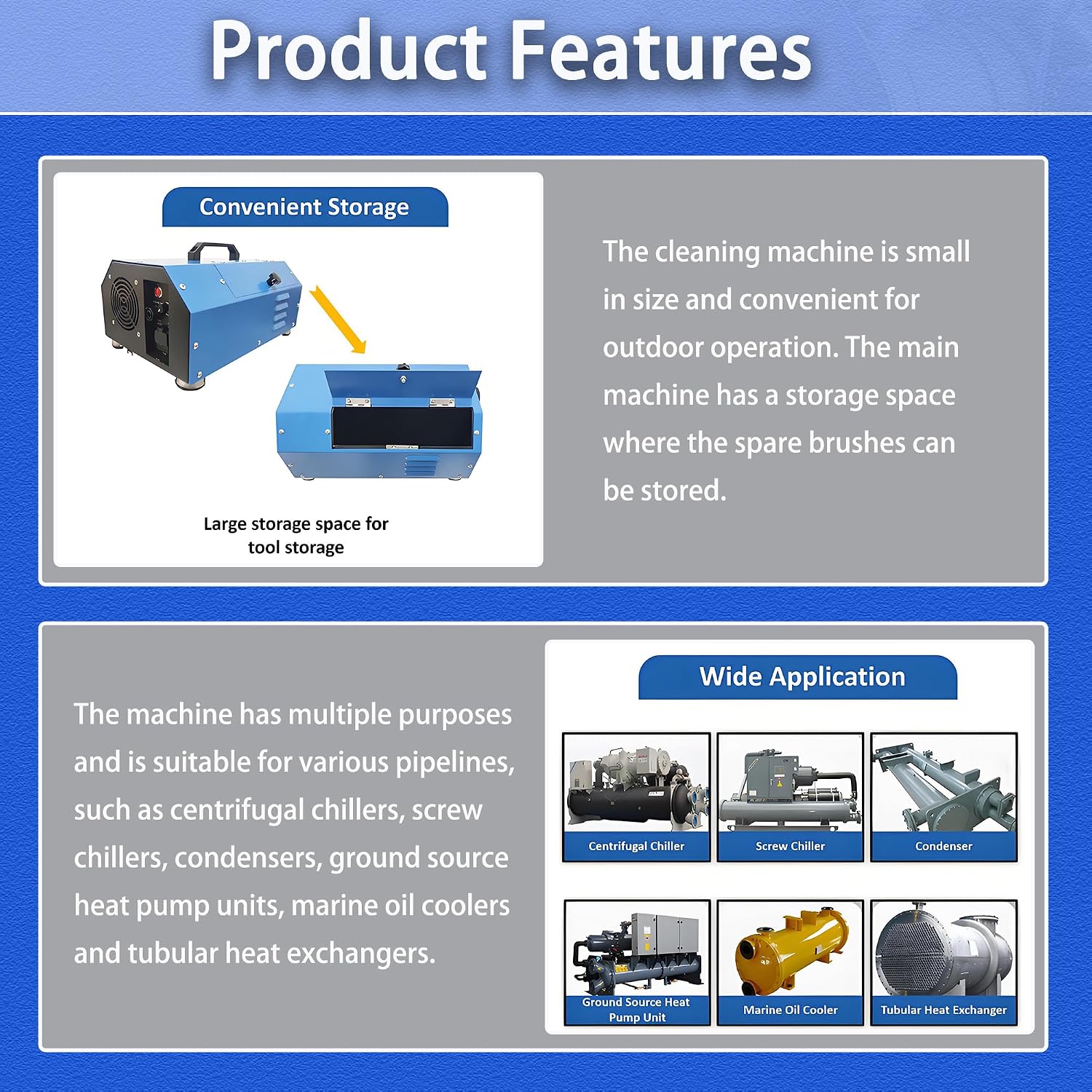

• [COMPACT & PORTABLE DESIGN]- The main unit weighs only 10kg, with compact external dimensions (365*240*210mm). This condenser tube cleaning machine is small in size and easy to move, making it suitable for outdoor use. The main unit features a storage space where the spare brushes can be stored. The included pneumatic foot switch and leakage-protected power cord can be connected to the machine. Safety and ease of operation have been prioritized, making it an ideal choice for on-site work
• [VERSATILE APPLICATION FOR MULTIPLE PIPELINE TYPES]- This duct cleaner is widely suitable for centrifugal chillers, screw chillers, ground source heat pumps, and tubular heat exchangers. Its compatibility with pipes from 0.6-0.7 inches in diameter makes it a versatile tool for diverse industrial and commercial maintenance. By effectively removing dirt that causes energy loss, it addresses core pain points like machine damage situations and equipment downtime
• [PRECAUTION]- A 110V transformer is given as a present. If your power supply is 110V. You can connect the machine to the transformer and then connect the transformer to your 110V power supply. The flexible shaft should be stretched completely before powering on the machine, otherwise the mechanical core inside the shaft core will be twisted off
